01. Probability distributions

Language: Python (Jupyter notebook) - R version

Ported from 01_distributions.ipynb in the USACE-RMC Numerics-Python-Examples repository (0BSD licensed). The upstream notebook drives the C# Numerics.dll through pythonnet; this version uses corehydropy, whose compiled core is a validated C++ port of the same library, so the numbers below reproduce the upstream outputs exactly. The R version of this example uses the same core and prints the same numbers.

What you’ll learn

• Creating and parameterizing distributions by family name.
• Computing PDF, CDF, and quantile values.
• Statistical properties (mean, variance, skewness, kurtosis).
• When to use each distribution.

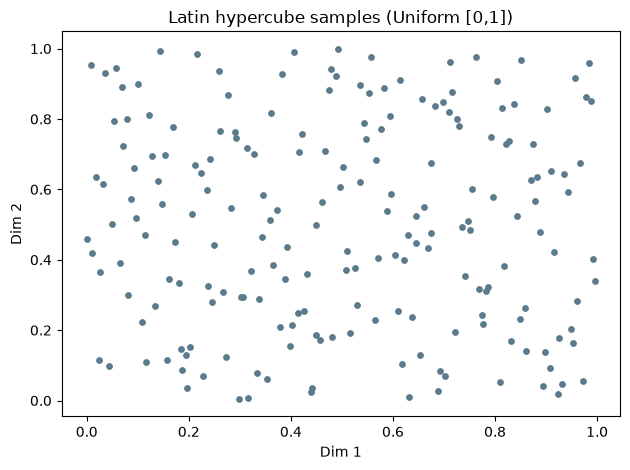

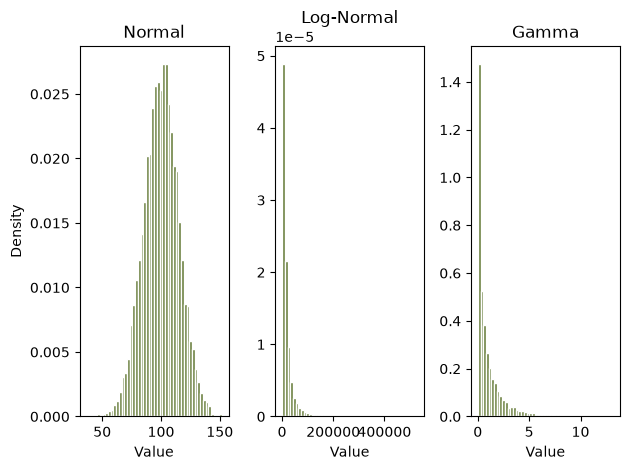

• Random sampling, including Latin hypercube sampling.

The upstream notebook tours ten of the 42 univariate families in the library: Normal, Log-Normal, GEV, Gamma, Weibull, Uniform, Triangular, PERT, Poisson, and Binomial. This port keeps every family and condenses the long mathematical derivations; see the upstream notebook for the full detail.

Setup

The upstream setup loads the CoreCLR runtime and imports each distribution class from Numerics.Distributions. Here one import covers everything, and every family is constructed by name through ch.Distribution.

import corehydropy as ch
import numpy as np
import matplotlib.pyplot as plt
import pandas as pd

# Earth-tone palette used throughout
OLIVE, CLAY, SLATE, GRAY = "#6b7f3f", "#b06a3b", "#5b7a8c", "#8c8c7a"

print("Setup complete")

Setup complete

Basic example: the Normal distribution

The Normal (Gaussian) distribution is the most widely used continuous distribution. It arises naturally from the Central Limit Theorem: the sum of many independent random variables tends toward a Normal distribution regardless of the underlying distributions. It is parameterized by its mean \(\mu\) and standard deviation \(\sigma\):

\[ f(x) = \frac{1}{\sigma\sqrt{2\pi}} \exp\!\left(-\frac{(x - \mu)^2}{2\sigma^2}\right), \quad -\infty < x < \infty \]

Note that the library reports Pearson (non-excess) kurtosis, which is 3.0 for a Normal distribution. The “excess kurtosis” convention used by scipy/numpy is Pearson minus 3.

When to use: symmetric data, many natural phenomena, Central Limit Theorem applications.

# Create Normal distribution -- Normal(mean=100, sd=15)
normal = ch.Distribution("Normal", [100, 15])
m = normal.moments()

print(f"Mean: {m['mean']}")
print(f"Standard Deviation: {m['sd']}")
print(f"Variance: {m['sd']**2}")
print(f"Skewness: {m['skewness']}")
print(f"Kurtosis: {m['kurtosis']}")
print(f"Minimum: {m['minimum']}")
print(f"Maximum: {m['maximum']}")
print(f"5th Percentile: {normal.quantile(0.05)}")
print(f"Median: {normal.quantile(0.5)}")
print(f"95th Percentile: {normal.quantile(0.95)}")

# Plot the PDF and CDF over the 0.1% to 99.9% quantile range.
# PDF/CDF/quantile all accept arrays directly.
x = np.linspace(normal.quantile(0.001), normal.quantile(0.999), 500)

plt.figure()
plt.plot(x, normal.pdf(x), color=OLIVE, linewidth=2)
plt.fill_between(x, normal.pdf(x), alpha=0.25, color=OLIVE)
plt.xlabel("x")
plt.ylabel("PDF")

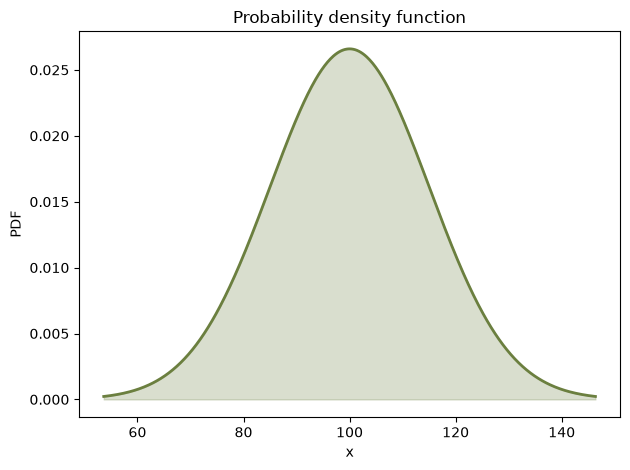

plt.title("Probability density function")
plt.tight_layout()
plt.show()

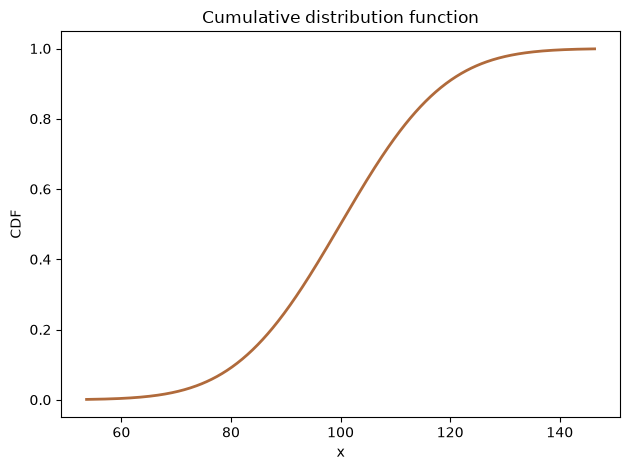

plt.figure()
plt.plot(x, normal.cdf(x), color=CLAY, linewidth=2)
plt.xlabel("x")
plt.ylabel("CDF")
plt.title("Cumulative distribution function")
plt.tight_layout()
plt.show()

Mean: 100.0
Standard Deviation: 15.0
Variance: 225.0
Skewness: 0.0
Kurtosis: 3.0
Minimum: -inf
Maximum: inf
5th Percentile: 75.32719559572791
Median: 100.0
95th Percentile: 124.67280440427207

Helper functions

Two small helpers make the rest of the tour concise: one plots the PDF and CDF side by side, the other prints the statistics table the upstream notebook shows for each family.

def plot_distribution(dist, x_range=None, n_points=500, title=None):
    """Plot PDF and CDF of a distribution."""
    if x_range is None:
        x_range = (dist.quantile(0.001), dist.quantile(0.999))
    x = np.linspace(x_range[0], x_range[1], n_points)

    fig, (ax1, ax2) = plt.subplots(1, 2)
    ax1.plot(x, dist.pdf(x), color=OLIVE, linewidth=2)
    ax1.fill_between(x, dist.pdf(x), alpha=0.25, color=OLIVE)
    ax1.set_xlabel("x")
    ax1.set_ylabel("PDF")
    ax2.plot(x, dist.cdf(x), color=CLAY, linewidth=2)
    ax2.set_xlabel("x")
    ax2.set_ylabel("CDF")
    if title:
        fig.suptitle(title)
    plt.tight_layout()
    plt.show()


def print_statistics(dist, name="Distribution"):
    """Print the statistics table upstream shows for each family."""
    m = dist.moments()
    df = pd.DataFrame({
        "Statistic": ["Mean", "Std Deviation", "Variance", "Skewness",
                      "Kurtosis", "Minimum", "Maximum", "5th Percentile",
                      "Median", "95th Percentile"],
        "Value": [m["mean"], m["sd"], m["sd"] ** 2, m["skewness"],
                  m["kurtosis"], m["minimum"], m["maximum"],
                  dist.quantile(0.05), dist.quantile(0.5),
                  dist.quantile(0.95)],
    })
    print(f"\n{name} statistics:")
    print(df.round(4).to_string(index=False))

Continuous distributions

A parameterization note before the tour: the library uses its own parameter conventions (for example, GEV uses \(\xi\), \(\alpha\), \(\kappa\) in the Hosking convention). If you compare to textbooks or SciPy, double-check the parameter definitions. d.parameter_names shows the constructor order for any family.

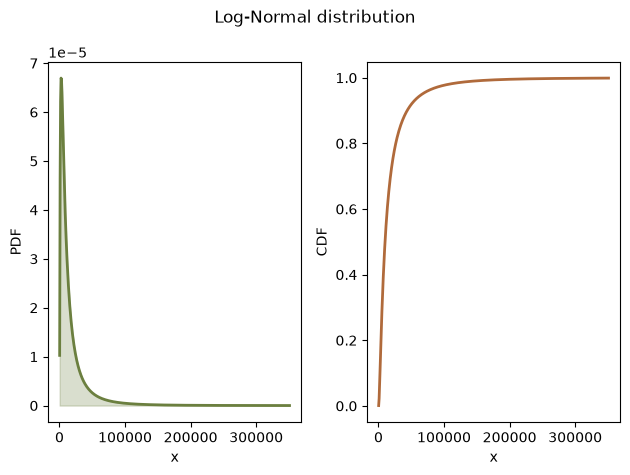

Log-Normal

A random variable \(X\) follows a Log-Normal distribution if \(\log(X)\) follows a Normal distribution. It suits strictly positive, right-skewed data arising from multiplicative processes. Matching the C# library, the "LogNormal" family uses base-10 logarithms: the parameters are the mean and standard deviation of \(\log_{10}(X)\). The upstream C# class has a mutable Base property; that is not exposed here. Use the "LnNormal" family when you want the base-\(e\) form.

When to use: right-skewed data that is always positive (flows, particle sizes, incomes).

lognormal = ch.Distribution("LogNormal", [4.0, 0.5])

print_statistics(lognormal, "LogNormal(4.0, 0.5)")
plot_distribution(lognormal, title="Log-Normal distribution")

LogNormal(4.0, 0.5) statistics:
      Statistic        Value
           Mean 1.940096e+04
  Std Deviation 3.225447e+04
       Variance 1.040351e+09
       Skewness 9.582700e+00
       Kurtosis 3.468718e+02
        Minimum 0.000000e+00
        Maximum          inf
 5th Percentile 1.505127e+03
         Median 1.000000e+04
95th Percentile 6.643957e+04

Generalized Extreme Value (GEV)

The GEV distribution unifies three classical extreme value distributions into a single three-parameter family. It is the limiting distribution for block maxima (annual maximum floods, peak wind speeds) under the Fisher-Tippett-Gnedenko theorem. The parameterization is location \(\xi\), scale \(\alpha > 0\), and shape \(\kappa\) in the Hosking convention, where the sign of \(\kappa\) follows L-moment theory:

\[ F(x) = \exp(-e^{-y}), \qquad y = \begin{cases} -\dfrac{1}{\kappa}\ln\!\left(1 - \kappa\dfrac{x - \xi}{\alpha}\right) & \kappa \neq 0 \\[6pt] \dfrac{x - \xi}{\alpha} & \kappa = 0 \end{cases} \]

• \(\kappa < 0\): Frechet type (heavy upper tail, bounded below)
• \(\kappa = 0\): Gumbel (unbounded)
• \(\kappa > 0\): Weibull type (bounded above)

The mean exists when \(|\kappa| < 1\) and the variance when \(|\kappa| < 1/2\), which is why two of the three tables below show NaN moments.

When to use: extreme events (floods, droughts, maxima and minima).

# Hosking convention: kappa < 0 => Frechet; kappa > 0 => Weibull type
gev_frechet = ch.Distribution("GeneralizedExtremeValue", [100, 15, -0.5])
gev_gumbel = ch.Distribution("GeneralizedExtremeValue", [100, 15, 0.0])
gev_weibull = ch.Distribution("GeneralizedExtremeValue", [100, 15, 0.5])

x = np.linspace(50, 200, 500)
plt.figure()
plt.plot(x, gev_frechet.pdf(x), color=OLIVE, linewidth=2, label="kappa = -0.5 (Frechet)")
plt.plot(x, gev_gumbel.pdf(x), color=CLAY, linewidth=2, label="kappa = 0.0 (Gumbel)")
plt.plot(x, gev_weibull.pdf(x), color=SLATE, linewidth=2, label="kappa = 0.5 (Weibull)")
plt.xlabel("x")
plt.ylabel("PDF")

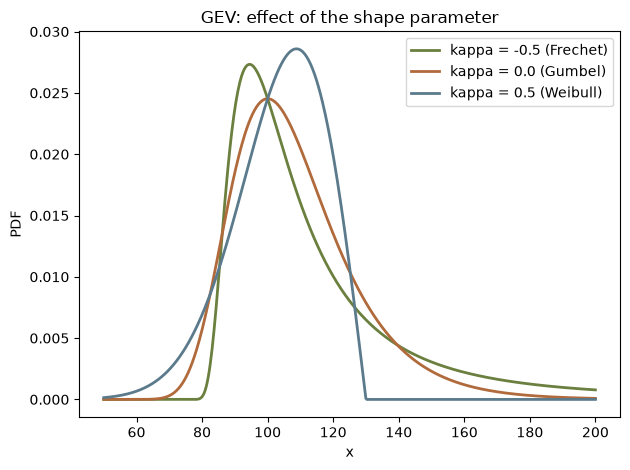

plt.title("GEV: effect of the shape parameter")
plt.legend()
plt.tight_layout()
plt.show()

print_statistics(gev_frechet, "GEV (Frechet type)")
print_statistics(gev_gumbel, "GEV (Gumbel type)")
print_statistics(gev_weibull, "GEV (Weibull type)")

GEV (Frechet type) statistics:
      Statistic    Value
           Mean 123.1736
  Std Deviation      NaN
       Variance      NaN
       Skewness      NaN
       Kurtosis      NaN
        Minimum  70.0000
        Maximum      inf
 5th Percentile  87.3328
         Median 106.0337
95th Percentile 202.4619

GEV (Gumbel type) statistics:
      Statistic    Value
           Mean 108.6582
  Std Deviation  19.2382
       Variance 370.1102
       Skewness   1.1396
       Kurtosis   5.4000
        Minimum     -inf
        Maximum      inf
 5th Percentile  83.5422
         Median 105.4977
95th Percentile 144.5529

GEV (Weibull type) statistics:
      Statistic    Value
           Mean 103.4132
  Std Deviation      NaN
       Variance      NaN
       Skewness      NaN
       Kurtosis      NaN
        Minimum     -inf
        Maximum 130.0000
 5th Percentile  78.0754
         Median 105.0234
95th Percentile 123.2056

Gamma

The Gamma distribution is a flexible two-parameter family for positive-valued data. It generalizes the Exponential distribution and appears in waiting-time problems, rainfall modeling, and Bayesian statistics. The factory name is "GammaDistribution" (matching the C# class name), with scale \(\theta\) first and shape \(\kappa\) second:

\[ f(x) = \frac{x^{\kappa-1}\, e^{-x/\theta}}{\theta^{\kappa}\,\Gamma(\kappa)}, \quad x > 0 \]

When to use: positive data, waiting times, rainfall amounts.

gamma = ch.Distribution("GammaDistribution", [2.0, 0.5])
print_statistics(gamma, "Gamma(scale=2, shape=0.5)")

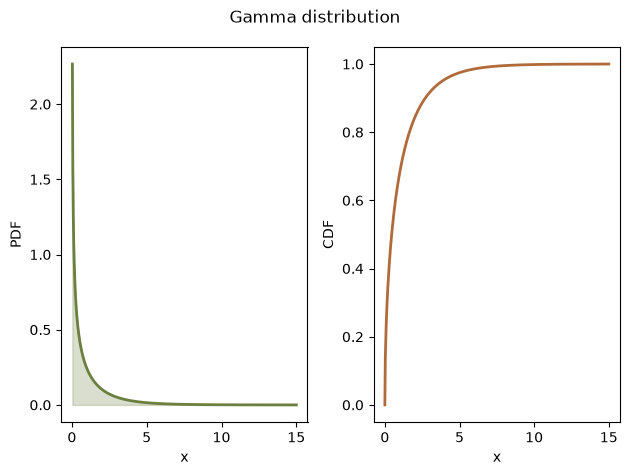

plot_distribution(gamma, x_range=(0, 15), title="Gamma distribution")

Gamma(scale=2, shape=0.5) statistics:
      Statistic   Value
           Mean  1.0000
  Std Deviation  1.4142
       Variance  2.0000
       Skewness  2.8284
       Kurtosis 15.0000
        Minimum  0.0000
        Maximum     inf
 5th Percentile  0.0039
         Median  0.4549
95th Percentile  3.8415

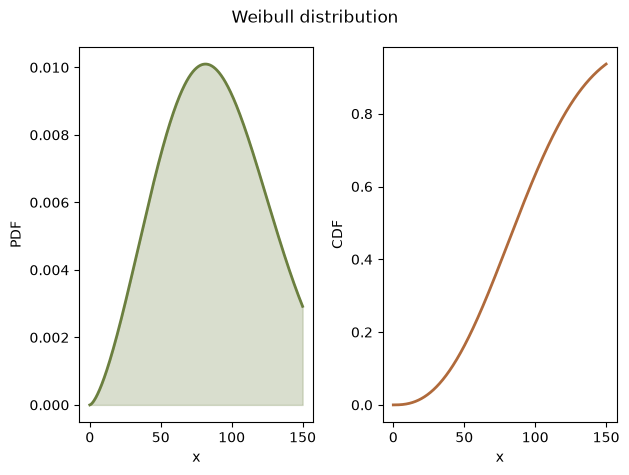

Weibull

The Weibull distribution is a flexible two-parameter model for nonnegative data. Its shape parameter controls the failure rate: \(\kappa < 1\) gives decreasing hazard (early failures), \(\kappa = 1\) reduces to the Exponential distribution, and \(\kappa > 1\) yields increasing hazard (wear-out):

\[ F(x) = 1 - \exp\left[-\left(\frac{x}{\lambda}\right)^{\kappa}\right], \quad x \ge 0 \]

When to use: reliability analysis, wind speeds, failure times.

weibull = ch.Distribution("Weibull", [100, 2.5])
print_statistics(weibull, "Weibull(scale=100, shape=2.5)")
plot_distribution(weibull, x_range=(0, 150), title="Weibull distribution")

Weibull(scale=100, shape=2.5) statistics:
      Statistic     Value
           Mean   88.7264
  Std Deviation   37.9667
       Variance 1441.4669
       Skewness    0.3586
       Kurtosis    2.8568
        Minimum    0.0000
        Maximum       inf
 5th Percentile   30.4807
         Median   86.3635
95th Percentile  155.0962

Bounded distributions

Three families for quantities with known bounds. The Uniform distribution assigns equal density to every value in \([a, b]\): maximum uncertainty given only the support. The Triangular distribution adds a most likely value (the mode) between the bounds, a common shape for expert elicitation. The PERT distribution (factory name "Pert") takes the same minimum, most likely, and maximum inputs but maps them to a smooth Beta density on \([a, b]\) with mean \((a + 4c + b)/6\), giving gentler tails than the Triangular.

When to use: bounded quantities; Uniform when only the range is known, Triangular or PERT when a most likely value is available (project estimates, expert opinion).

uniform = ch.Distribution("Uniform", [0, 100])
print_statistics(uniform, "Uniform(0, 100)")

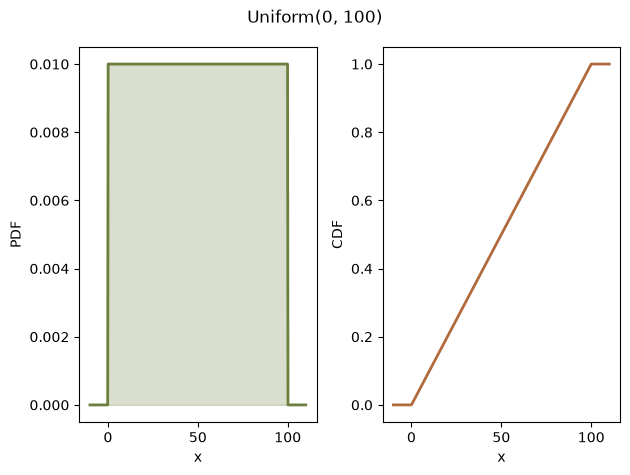

plot_distribution(uniform, x_range=(-10, 110), title="Uniform(0, 100)")

Uniform(0, 100) statistics:
      Statistic    Value
           Mean  50.0000
  Std Deviation  28.8675
       Variance 833.3333
       Skewness   0.0000
       Kurtosis   1.8000
        Minimum   0.0000
        Maximum 100.0000
 5th Percentile   5.0000
         Median  50.0000
95th Percentile  95.0000

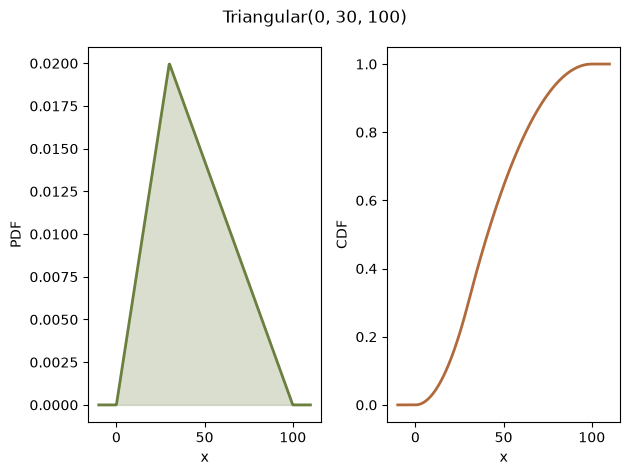

triangular = ch.Distribution("Triangular", [0, 30, 100])
print_statistics(triangular, "Triangular(0, 30, 100)")
plot_distribution(triangular, x_range=(-10, 110), title="Triangular(0, 30, 100)")

Triangular(0, 30, 100) statistics:
      Statistic    Value
           Mean  43.3333
  Std Deviation  20.9497
       Variance 438.8889
       Skewness   0.3561
       Kurtosis   2.4000
        Minimum   0.0000
        Maximum 100.0000
 5th Percentile  12.2474
         Median  40.8392
95th Percentile  81.2917

pert = ch.Distribution("Pert", [10, 50, 100])
print_statistics(pert, "PERT(10, 50, 100)")

# Compare PERT vs Triangular with the same min / most likely / max
tri = ch.Distribution("Triangular", [10, 50, 100])
x = np.linspace(5, 105, 500)
plt.figure()
plt.plot(x, pert.pdf(x), color=OLIVE, linewidth=2, label="PERT")
plt.plot(x, tri.pdf(x), color=CLAY, linewidth=2, linestyle="--", label="Triangular")
plt.xlabel("x")
plt.ylabel("PDF")

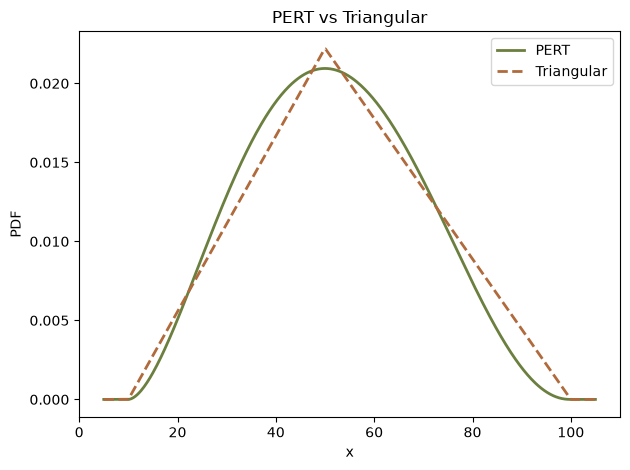

plt.title("PERT vs Triangular")
plt.legend()
plt.tight_layout()
plt.show()

PERT(10, 50, 100) statistics:
      Statistic    Value
           Mean  51.6667
  Std Deviation  16.9617
       Variance 287.6984
       Skewness   0.0983
       Kurtosis   2.3462
        Minimum  10.0000
        Maximum 100.0000
 5th Percentile  24.4643
         Median  51.2732
95th Percentile  80.2234

Discrete distributions

The library uses pdf() for both continuous and discrete families; for discrete distributions, read pdf() as the probability mass function (PMF).

Poisson

The Poisson distribution models counts of events over a fixed interval when events occur independently at a constant average rate \(\lambda\):

\[ P(X=k) = \frac{\lambda^{k} e^{-\lambda}}{k!}, \quad k = 0, 1, 2, \ldots \]

Mean and variance are both \(\lambda\).

When to use: count data, events per time period, rare events.

poisson = ch.Distribution("Poisson", [3.5])
print_statistics(poisson, "Poisson(3.5)")

k = np.arange(0, 15)
fig, (ax1, ax2) = plt.subplots(1, 2)
ax1.bar(k, poisson.pdf(k.astype(float)), color=OLIVE, edgecolor="white")
ax1.set_xlabel("k (count)")
ax1.set_ylabel("PMF")
ax2.step(k, poisson.cdf(k.astype(float)), where="post", color=CLAY, linewidth=2)
ax2.scatter(k, poisson.cdf(k.astype(float)), color=CLAY, s=20, zorder=3)
ax2.set_xlabel("k (count)")
ax2.set_ylabel("CDF")

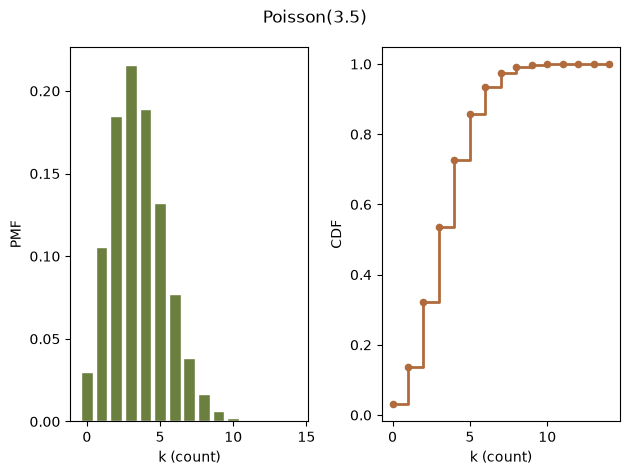

fig.suptitle("Poisson(3.5)")
plt.tight_layout()
plt.show()

print(f"P(X = 3): {poisson.pdf(3):.4f}")
print(f"P(X <= 5): {poisson.cdf(5):.4f}")

Poisson(3.5) statistics:
      Statistic  Value
           Mean 3.5000
  Std Deviation 1.8708
       Variance 3.5000
       Skewness 0.5345
       Kurtosis 3.2857
        Minimum 0.0000
        Maximum    inf
 5th Percentile 1.0000
         Median 3.0000
95th Percentile 7.0000

P(X = 3): 0.2158
P(X <= 5): 0.8576

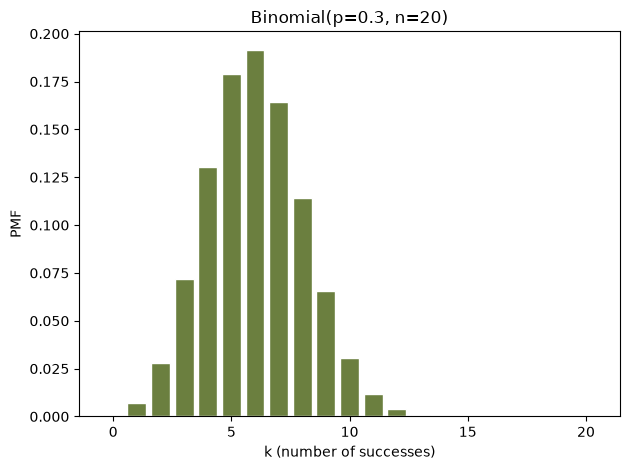

Binomial

The Binomial distribution models the number of successes in \(n\) independent Bernoulli trials with success probability \(p\):

\[ P(X=k) = \binom{n}{k} p^k (1-p)^{n-k}, \quad k = 0, 1, \ldots, n \]

The constructor order matches the C# class: probability first, then the number of trials.

When to use: fixed number of trials with binary outcomes.

binomial = ch.Distribution("Binomial", [0.3, 20])
print_statistics(binomial, "Binomial(p=0.3, n=20)")

k = np.arange(0, 21)
plt.figure()
plt.bar(k, binomial.pdf(k.astype(float)), color=OLIVE, edgecolor="white")
plt.xlabel("k (number of successes)")
plt.ylabel("PMF")
plt.title("Binomial(p=0.3, n=20)")
plt.tight_layout()
plt.show()

bm = binomial.moments()
print(f"Expected value: {bm['mean']:.2f}")
print(f"Most likely value: {int(bm['mean'])}")

Binomial(p=0.3, n=20) statistics:
      Statistic   Value
           Mean  6.0000
  Std Deviation  2.0494
       Variance  4.2000
       Skewness  0.1952
       Kurtosis  2.9381
        Minimum  0.0000
        Maximum 20.0000
 5th Percentile  3.0000
         Median  6.0000
95th Percentile  9.0000

Expected value: 6.00
Most likely value: 6

Generating and analyzing random samples

Every univariate distribution has a random() method (the port of GenerateRandomValues). The upstream notebook draws these samples unseeded; here they are seeded so the histograms and the table below reproduce exactly, in both languages. The sample statistics therefore differ from the upstream run’s unseeded table, but match the R version of this page bit for bit.

n_samples = 10000

normal_samples = ch.Distribution("Normal", [100, 15]).random(n_samples, seed=42)
lognormal_samples = ch.Distribution("LogNormal", [4, 0.5]).random(n_samples, seed=42)
gamma_samples = ch.Distribution("GammaDistribution", [2, 0.5]).random(n_samples, seed=42)

fig, axes = plt.subplots(1, 3)
for ax, samples, name in zip(
    axes,
    [normal_samples, lognormal_samples, gamma_samples],
    ["Normal", "Log-Normal", "Gamma"],
):
    ax.hist(samples, bins=50, density=True, color=OLIVE, edgecolor="white")
    ax.set_title(name)
    ax.set_xlabel("Value")
axes[0].set_ylabel("Density")
plt.tight_layout()
plt.show()


def sample_skew(x):
    """Adjusted Fisher-Pearson sample skewness (same formula as the R twin)."""
    x = np.asarray(x)
    n = len(x)
    g1 = np.mean((x - x.mean()) ** 3) / np.mean((x - x.mean()) ** 2) ** 1.5
    return g1 * np.sqrt(n * (n - 1)) / (n - 2)


stats_df = pd.DataFrame({
    "Distribution": ["Normal", "Log-Normal", "Gamma"],
    "Sample Mean": [s.mean() for s in [normal_samples, lognormal_samples, gamma_samples]],
    "Sample Std": [s.std(ddof=1) for s in [normal_samples, lognormal_samples, gamma_samples]],
    "Sample Skew": [sample_skew(s) for s in [normal_samples, lognormal_samples, gamma_samples]],
})
print("\nSample statistics (seed=42):")
print(stats_df.to_string(index=False))

Sample statistics (seed=42):
Distribution  Sample Mean   Sample Std  Sample Skew
      Normal    99.900133    14.994543    -0.044765
  Log-Normal 19028.289596 29289.105202     5.599115
       Gamma     0.987589     1.382078     2.682445

Latin hypercube sampling

Latin hypercube sampling (LHS) is a stratified sampling technique. Each dimension’s \([0, 1)\) range is divided into \(n\) equal strata and exactly one sample lands in each stratum:

\[ x_{ij} = \frac{\pi_j(i) + U_{ij}}{n}, \quad i = 0, \ldots, n-1 \]

where \(\pi_j\) is an independent random permutation for each dimension and \(U_{ij} \sim \text{Uniform}(0, 1)\). The median=True variant replaces \(U_{ij}\) with 0.5, placing each point at its stratum center. Projected onto any single axis, the samples fall exactly one per stratum, which removes the clustering and gaps of simple random sampling. LHS often reaches the accuracy of plain Monte Carlo with 5 to 10 times fewer samples.

When to use: Monte Carlo with a limited budget, sensitivity analysis, calibration of expensive models, risk assessment.

lhs = ch.latin_hypercube(200, 2, seed=12345)

plt.figure()
plt.scatter(lhs[:, 0], lhs[:, 1], s=15, color=SLATE)
plt.title("Latin hypercube samples (Uniform [0,1])")
plt.xlabel("Dim 1")
plt.ylabel("Dim 2")
plt.tight_layout()
plt.show()

# The defining property: sorted samples in each dimension fall one per stratum.
n = lhs.shape[0]
stratified = all(
    (i / n <= s < (i + 1) / n)
    for j in range(lhs.shape[1])
    for i, s in enumerate(np.sort(lhs[:, j]))
)
print(f"One sample per stratum in every dimension: {stratified}")

One sample per stratum in every dimension: True

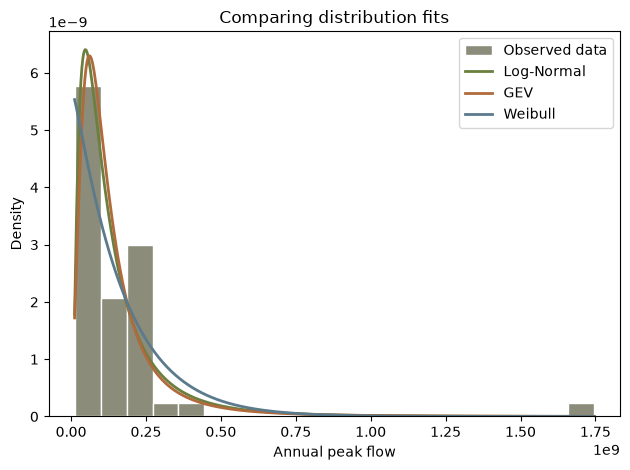

Comparing multiple distributions

More than one distribution may fit a dataset well, so it pays to consider several candidates. Here we simulate 50 years of annual peak flows from a Log-Normal distribution (seeded, so the data reproduce exactly) and fit three candidates by maximum likelihood. Every family fits through ch.Distribution.fit; GEV also has a dedicated ch.gev_fit helper whose bespoke path carries quantile standard errors. Distribution fitting is covered properly in the next example.

# Simulate flood frequency data (seeded; upstream uses the same seed)
observed_data = ch.Distribution("LogNormal", [8, 0.6]).random(50, seed=123)

lognormal_fit = ch.Distribution.fit("LogNormal", observed_data, method="mle")
weibull_fit = ch.Distribution.fit("Weibull", observed_data, method="mle")
gev_fit = ch.Distribution.fit("GeneralizedExtremeValue", observed_data, method="mle")
g = dict(zip(("location", "scale", "shape"), gev_fit.params))

print(f"Log-Normal fit: {lognormal_fit}")
print(f"Weibull fit: params = {np.round(weibull_fit.params, 4)}")
print(f"GEV fit: {g}")

plt.figure()
plt.hist(observed_data, bins=20, density=True, color=GRAY, edgecolor="white",
         label="Observed data")
x = np.linspace(observed_data.min(), observed_data.max(), 500)
plt.plot(x, lognormal_fit.pdf(x), color=OLIVE, linewidth=2, label="Log-Normal")
plt.plot(x, gev_fit.pdf(x), color=CLAY, linewidth=2, label="GEV")
plt.plot(x, weibull_fit.pdf(x), color=SLATE, linewidth=2, label="Weibull")
plt.xlabel("Annual peak flow")
plt.ylabel("Density")
plt.title("Comparing distribution fits")
plt.legend()
plt.tight_layout()
plt.show()

Log-Normal fit: Distribution(LogNormal(µ = 8.01748, σ = 0.383659))
Weibull fit: params = [1.62478206e+08 1.02370000e+00]
GEV fit: {'location': 80617292.83426607, 'scale': 62469721.14348653, 'shape': -0.3892412965035586}

Distribution selection guide

Distribution	Type	Typical use case	Parameters
Normal	Continuous	Symmetric data, measurements	\(\mu\), \(\sigma\)
Log-Normal	Continuous	Right-skewed positive data	\(\mu\), \(\sigma\)
Uniform	Continuous	Equal probability over range	min, max
Triangular	Continuous	Bounded with mode	min, mode, max
PERT	Continuous	Project estimates	min, mode, max
Gamma	Continuous	Positive data, waiting times	\(\theta\), \(\kappa\)
Weibull	Continuous	Reliability, failure time	\(\lambda\), \(\kappa\)
Exponential	Continuous	Time between events	\(\lambda\)
Gumbel	Continuous	Extreme maxima	\(\xi\), \(\alpha\)
GEV	Continuous	General extreme values	\(\xi\), \(\alpha\), \(\kappa\)
Beta	Continuous	Proportions on [0,1]	\(\alpha\), \(\beta\)
Poisson	Discrete	Count data, rare events	\(\lambda\)
Binomial	Discrete	Binary outcomes, trials	\(n\), \(p\)
Bernoulli	Discrete	Single trial success/failure	\(p\)

Summary

You have now explored:

• Creating distributions with different parameters.
• Computing PDF, CDF, and quantile values.
• Generating random samples, including Latin hypercube designs.
• Visualizing distributions.
• Understanding when to use each distribution.

Exercise

Try creating and plotting these distributions on your own (use d.parameter_names to check the constructor order):

1. ch.Distribution("Beta", [2, 5]) - useful for probabilities and proportions.
2. ch.Distribution("StudentT", ...) with 3 degrees of freedom - a heavy-tailed alternative to the Normal.
3. ch.Distribution("ChiSquared", [5]) - goodness-of-fit testing.

Reproduction check

Values printed by the upstream notebook (run against the real C# library), compared with this port. Everything here is deterministic, so the match is exact; most upstream tables print 4 decimal places (or 7 significant figures for the Log-Normal), so those rows are compared at the precision upstream shows. The seeded draws, the Latin hypercube design, and the fitted parameters are additionally asserted bit-identical to the R version of this page.

Quantity	Upstream C#	This port	Status
Normal(100,15).InverseCDF(0.05)	75.32719559572791	normal.quantile(0.05)	exact
Normal(100,15).InverseCDF(0.95)	124.67280440427207	normal.quantile(0.95)	exact
LogNormal(4,0.5).Mean	1.940096e+04	moments()["mean"]	exact (7 sig figs shown)
LogNormal(4,0.5).Kurtosis	346.8718	moments()["kurtosis"]	exact (4 dp shown)
LogNormal(4,0.5).InverseCDF(0.95)	6.643957e+04	.quantile(0.95)	exact (7 sig figs shown)
GEV(100,15,-0.5) mean / min	123.1736 / 70.0	moments()	exact (4 dp shown)
GEV(100,15,0) mean / sd	108.6582 / 19.2382	moments()	exact (4 dp shown)
GEV(100,15,0.5) mean / max	103.4132 / 130.0	moments()	exact (4 dp shown)
Gamma(2,0.5) mean / kurtosis	1.0 / 15.0	moments()	exact
Gamma(2,0.5).InverseCDF(0.95)	3.8415	.quantile(0.95)	exact (4 dp shown)
Weibull(100,2.5) mean	88.7264	moments()["mean"]	exact (4 dp shown)
Uniform(0,100) sd / kurtosis	28.8675 / 1.8	moments()	exact
Triangular(0,30,100) mean / median	43.3333 / 40.8392	moments(), .quantile(0.5)	exact (4 dp shown)
PERT(10,50,100) mean / median	51.6667 / 51.2732	moments(), .quantile(0.5)	exact (4 dp shown)
Poisson(3.5) P(X=3) / P(X<=5)	0.2158 / 0.8576	.pdf(3), .cdf(5)	exact (4 dp shown)
Binomial(0.3,20) mean / 95th pct	6.0 / 9.0	moments(), .quantile(0.95)	exact
First draw, LogNormal(8,0.6) seed 123	(not printed upstream)	bit-identical to R twin	exact
LHS(200, 2, seed 12345) first point	(not printed upstream)	bit-identical to R twin	exact

The cell below fails the notebook if any value drifts.

# Upstream reference values: 01_distributions.ipynb, cells 4, 8, 10, 12, 14,
# 16, 18, 20, 22, 24 outputs. Upstream tables print DataFrame.round(4), so
# 4-decimal literals are compared at that precision; the underlying math is
# deterministic.
def shown(x, literal, tol=5e-5):
    return abs(x - literal) < tol


# Normal(100, 15) -- full-precision f-string prints upstream
nm = ch.Distribution("Normal", [100, 15])
assert nm.quantile(0.05) == 75.32719559572791
assert nm.quantile(0.5) == 100.0
assert nm.quantile(0.95) == 124.67280440427207

# LogNormal(4, 0.5) -- shown to 7 significant figures upstream
ln_m = ch.Distribution("LogNormal", [4, 0.5]).moments()
assert abs(ln_m["mean"] / 1.940096e4 - 1) < 1e-6
assert abs(ln_m["sd"] / 3.225447e4 - 1) < 1e-6
assert shown(ln_m["skewness"], 9.5827)
assert shown(ln_m["kurtosis"], 346.8718)
ln_d = ch.Distribution("LogNormal", [4, 0.5])
assert abs(ln_d.quantile(0.05) / 1.505127e3 - 1) < 1e-6
assert abs(ln_d.quantile(0.95) / 6.643957e4 - 1) < 1e-6

# GEV shapes
fm, gm_, wm = (gev_frechet.moments(), gev_gumbel.moments(), gev_weibull.moments())
assert shown(fm["mean"], 123.1736) and fm["minimum"] == 70.0
assert shown(gev_frechet.quantile(0.95), 202.4619)
assert shown(gm_["mean"], 108.6582) and shown(gm_["sd"], 19.2382)
assert shown(gm_["skewness"], 1.1396) and gm_["kurtosis"] == 5.4
assert shown(gev_gumbel.quantile(0.5), 105.4977)
assert shown(wm["mean"], 103.4132) and wm["maximum"] == 130.0
assert shown(gev_weibull.quantile(0.95), 123.2056)

# Gamma(2, 0.5)
gam_m = gamma.moments()
assert gam_m["mean"] == 1.0 and gam_m["kurtosis"] == 15.0
assert shown(gam_m["sd"], 1.4142) and shown(gam_m["skewness"], 2.8284)
assert shown(gamma.quantile(0.5), 0.4549) and shown(gamma.quantile(0.95), 3.8415)

# Weibull(100, 2.5)
wb_m = weibull.moments()
assert shown(wb_m["mean"], 88.7264) and shown(wb_m["sd"], 37.9667)
assert shown(weibull.quantile(0.95), 155.0962)

# Uniform, Triangular, PERT
un_m = uniform.moments()
assert un_m["mean"] == 50.0 and un_m["kurtosis"] == 1.8 and shown(un_m["sd"], 28.8675)
tr_m = triangular.moments()
assert shown(tr_m["mean"], 43.3333) and shown(tr_m["skewness"], 0.3561)
assert shown(triangular.quantile(0.5), 40.8392) and shown(triangular.quantile(0.95), 81.2917)
pt_m = pert.moments()
assert shown(pt_m["mean"], 51.6667) and shown(pt_m["sd"], 16.9617)
assert shown(pert.quantile(0.5), 51.2732) and shown(pert.quantile(0.95), 80.2234)

# Poisson(3.5) and Binomial(0.3, 20)
po_m = poisson.moments()
assert po_m["mean"] == 3.5 and shown(po_m["sd"], 1.8708)
assert shown(poisson.pdf(3), 0.2158, tol=5e-5) and shown(poisson.cdf(5), 0.8576, tol=5e-5)
assert poisson.quantile(0.95) == 7.0
bi_m = binomial.moments()
assert bi_m["mean"] == 6.0 and shown(bi_m["sd"], 2.0494)
assert binomial.quantile(0.05) == 3.0 and binomial.quantile(0.95) == 9.0

# Seeded values, bit-identical across Python, R, and the C# library
assert normal_samples[0] == 95.20221411105254
assert observed_data[0] == 203499515.64666739
assert lhs[0, 0] == 0.12249509909539484
assert lhs[0, 1] == 0.81019698383868677
assert stratified
# Log-Normal MLE is deterministic (closed-form in log space); the tolerance
# only guards platform libm differences.
assert abs(lognormal_fit.params[0] / 8.0174794125819 - 1) < 1e-12
assert abs(lognormal_fit.params[1] / 0.383659272555292 - 1) < 1e-12

print("All reproduction checks passed.")

All reproduction checks passed.
