import corehydropy as ch23. Censored flood frequency
Bulletin 17C exists because a gauge record is rarely the whole story. A community remembers the 1927 flood; a high-water mark on a courthouse wall bounds it; nobody recorded the ordinary years in between, but everyone agrees nothing came close to the top of the levee. Guidelines for Determining Flood Flow Frequency (Bulletin 17C, England et al. 2019) calls these historical and paleoflood observations, and fitting them alongside the systematic record is the single largest improvement you can make to a flood-frequency estimate.
This example shows how to express that information with analysis_data() and hand it to an analysis through a model. It has no upstream counterpart: the USACE-RMC Numerics-Python-Examples repository has no censored-data example.
What you’ll learn
- Record historical floods known only within a range, and perception thresholds covering years with no gauge.
- See how censored observations reweight the plotting positions of the systematic record.
- Fit Bulletin 17C with and without that information, and compare the design flows.
Setup
The systematic record
Forty-eight years of annual peak flows in cubic feet per second, the same gauge record used in example 21.
peak_flows = [
6290, 2700, 13100, 16900, 14600, 9600, 7740, 8490, 8130, 12000,
17200, 15000, 12400, 6960, 6500, 5840, 10400, 18800, 21400, 22600,
14200, 11000, 12800, 15700, 4740, 6950, 11800, 12100, 20600, 14600,
14600, 8900, 10600, 14200, 14100, 14100, 12500, 7530, 13400, 17600,
13400, 19200, 16900, 15500, 14500, 21900, 10400, 7460,
]
n = len(peak_flows)
print(f"n = {n}, max = {max(peak_flows):,} cfs")n = 48, max = 22,600 cfsWhat we know beyond the gauge
Two large floods predate the gauge. Neither was measured, but both left evidence that brackets them: the first somewhere between 30,000 and 38,000 cfs, the second between 26,000 and 32,000. That is interval data, an observation known only to lie in a range.
The same historical work established that over the fifty years before the gauge was installed, exactly those two floods exceeded 25,000 cfs. That is a perception threshold: a statement about the years you did not observe, and the reason those two floods can be used at all. Without it they are just two large numbers with no record length to weigh them against.
Indexes are 0-based positions in the record. The systematic record occupies 0 to 47, so the historical period sits at 48 onward.
historical = {
"index": [n, n + 1],
"lower": [30000, 26000],
"value": [34000, 29000],
"upper": [38000, 32000],
}
perception = {
"start_index": n,
"end_index": n + 49,
"value": 25000,
"number_above": 2,
}
flood_data = ch.analysis_data(
exact=peak_flows,
interval=historical,
threshold=perception,
)
flood_data<AnalysisData 48 exact, 2 interval, 1 threshold>The frame now describes 98 years, not 48:
summary_censored = ch.analysis_data_summary(flood_data)
summary_plain = ch.analysis_data_summary(ch.analysis_data(peak_flows))
print(
f"record length: {summary_plain['total_record_length']} years systematic "
f"-> {summary_censored['total_record_length']} years with the historical period"
)record length: 48 years systematic -> 98 years with the historical periodCensoring reweights the systematic record
Plotting positions are where each observation lands on a probability plot. With censored data they are the Hirsch-Stedinger positions, which account for the years you did not observe. Adding a fifty-year historical period does not change the observations, but it does change what each one represents.
order = np.argsort(summary_plain["value"])[::-1][:5]
for i in order:
print(
f"{summary_plain['value'][i]:>8,.0f} cfs "
f"systematic only {summary_plain['plotting_position'][i]:.6f} "
f"with historical {summary_censored['plotting_position'][i]:.6f}"
) 22,600 cfs systematic only 0.020408 with historical 0.060392
21,900 cfs systematic only 0.040816 with historical 0.079967
21,400 cfs systematic only 0.061224 with historical 0.099542
20,600 cfs systematic only 0.081633 with historical 0.119117
19,200 cfs systematic only 0.102041 with historical 0.138692These are exceedance probabilities. With 48 years and nothing else, the largest gauged peak is the record maximum: a 1-in-49 event. Once the two historical floods are on the record it is only the third largest in 98 years, and its exceedance probability roughly triples, from 2% to 6%. Censoring corrects an over-optimistic ranking of the largest thing you happened to measure – which is precisely the bias historical information exists to remove.
# The standard normal quantile comes from corehydropy itself, no extra dependency.
z = ch.Distribution("Normal", [0, 1]).quantile
# Plotted against the non-exceedance quantile, so rarer events sit to the right.

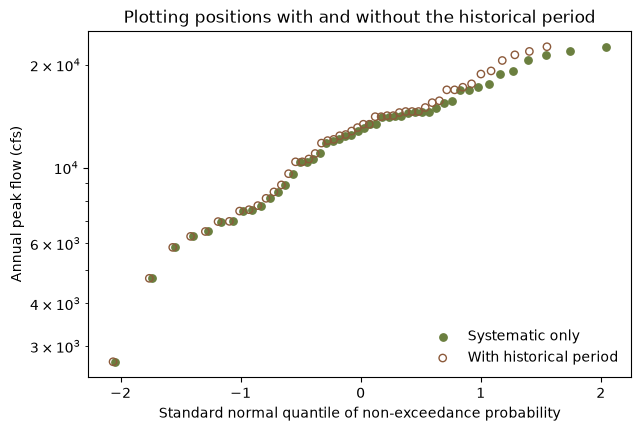

fig, ax = plt.subplots(figsize=(7, 4.5))
ax.scatter(z(1 - np.asarray(summary_plain["plotting_position"])), summary_plain["value"],
s=28, color="#6b7f3f", label="Systematic only")
ax.scatter(z(1 - np.asarray(summary_censored["plotting_position"])), summary_censored["value"],
s=28, facecolors="none", edgecolors="#8c5a3b", label="With historical period")
ax.set_yscale("log")
ax.set_xlabel("Standard normal quantile of non-exceedance probability")
ax.set_ylabel("Annual peak flow (cfs)")
ax.set_title("Plotting positions with and without the historical period")
ax.legend(frameon=False, loc="lower right")
plt.show()
Fit Bulletin 17C both ways
bulletin17c_analysis() takes a plain sequence for the systematic-only fit. For the censored fit, wrap the frame in a model and pass that instead. Everything else is unchanged.
fit_plain = ch.bulletin17c_analysis(peak_flows, output_length=2000, seed=20250811)
fit_censored = ch.bulletin17c_analysis(
ch.model_bulletin17c(flood_data), output_length=2000, seed=20250811
)
print(f"{'':<18}{'mean (log10)':>14}{'sd (log10)':>13}{'skew':>10}")
for label, fit in (("Systematic only", fit_plain), ("With historical", fit_censored)):
p = fit["parameters"]
print(f"{label:<18}{p[0]:>14.4f}{p[1]:>13.4f}{p[2]:>10.4f}") mean (log10) sd (log10) skew
Systematic only 4.0674 0.1888 -1.0103
With historical 4.0862 0.2032 -0.6863The skew moves from -1.01 to -0.69. A strongly negative skew is the log-Pearson III saying the upper tail is bounded; the two historical floods are direct evidence against that, and the fit responds.
Design flows
aeps = [0.5, 0.1, 0.02, 0.01]
eps = list(fit_plain["exceedance_probabilities"])
idx = [eps.index(a) for a in aeps]
print(f"{'Return period':<16}{'AEP':>8}{'Systematic':>13}{'Historical':>13}{'Change':>9}")
for a, i in zip(aeps, idx):
lo = 10 ** fit_plain["point_estimates"][i]
hi = 10 ** fit_censored["point_estimates"][i]
print(f"{'1 in ' + str(round(1 / a)):<16}{a:>8}{lo:>13,.0f}{hi:>13,.0f}"
f"{100 * (hi / lo - 1):>+8.0f}%")Return period AEP Systematic Historical Change
1 in 2 0.5 12,550 12,862 +2%
1 in 10 0.1 19,048 21,240 +12%
1 in 50 0.02 22,279 26,653 +20%
1 in 100 0.01 23,219 28,527 +23%The 1-in-100 design flow rises by roughly a quarter. The confidence bands widen too, which is the honest consequence of the interval observations: they add information about the tail, and they add uncertainty about their own magnitude.
print(f"{'AEP':>7}{'Lower (sys)':>14}{'Upper (sys)':>14}"
f"{'Lower (hist)':>15}{'Upper (hist)':>15}")
for a, i in zip(aeps, idx):
print(f"{a:>7}{fit_plain['lower_ci'][i]:>14,.0f}{fit_plain['upper_ci'][i]:>14,.0f}"
f"{fit_censored['lower_ci'][i]:>15,.0f}{fit_censored['upper_ci'][i]:>15,.0f}") AEP Lower (sys) Upper (sys) Lower (hist) Upper (hist)
0.5 11,098 14,215 12,050 17,564
0.1 17,418 21,357 18,431 24,119
0.02 17,728 26,592 19,976 31,620
0.01 17,728 28,969 19,976 35,343Low outliers
Bulletin 17C also censors from below. Small annual peaks carry little information about flood risk but drag a log-space fit badly; the Multiple Grubbs-Beck test identifies them so they can be treated as left-censored rather than dropped or trusted.
print(f"MGBT flags {ch.mgbt_test(peak_flows)} of {n} systematic peaks as low outliers")MGBT flags 13 of 48 systematic peaks as low outliersSet mgbt_low_outliers=True on the frame to apply it, or low_outlier_threshold to censor below a value you choose. This record is broad enough that the test flags a sizeable fraction, so this example leaves the low tail alone and censors only from above; on a record with a few genuine near-zero years, enabling it is standard practice.
A Bayesian fit over the same frame
Nothing about the frame is specific to Bulletin 17C. Any analysis takes a model, so the same censored data goes straight into a Bayesian MCMC fit.
bayes = ch.univariate_analysis(
ch.model_univariate("LogPearsonTypeIII", flood_data),
sampler="DEMCzs", iterations=400, output_length=2000,
seed=20250811, thinning_interval=1,
)
print("posterior mode:", ", ".join(f"{v:.4f}" for v in bayes["parameters"]))
print(f"AIC {bayes['aic']:.2f} | BIC {bayes['bic']:.2f} | DIC {bayes['dic']:.2f}")posterior mode: 4.0824, 0.2047, -0.3914
AIC 996.90 | BIC 1004.65 | DIC 989.24Reproduction check
# The pipeline is deterministic (the Bulletin 17C fit is generalized method of moments;
# the Bayesian fit is seeded), so these literals are what this port computes -- and the R
# version asserts exactly the same ones, which is what proves the cross-language
# identity. Both packages run the same compiled core with a bit-exact Mersenne Twister,
# so the match is exact here rather than merely close.
assert summary_plain["total_record_length"] == 48
assert summary_censored["total_record_length"] == 98
assert summary_censored["exact_count"] == 48
assert summary_censored["interval_count"] == 2
assert summary_censored["threshold_count"] == 1
assert max(summary_plain["plotting_position"]) == 0.97959183673469385
assert max(summary_censored["plotting_position"]) == 0.98042482299042066
assert fit_plain["parameters"] == [
4.0673990603110495, 0.18875601898861979, -1.010270060397249
]
assert fit_censored["parameters"] == [
4.0862266825545781, 0.2031671188484615, -0.68625874896060901
]
assert fit_plain["point_estimates"][idx[3]] == 4.3658392952709022
assert fit_censored["point_estimates"][idx[3]] == 4.4552510671638359
assert bayes["parameters"] == [
4.0823735395389731, 0.20467865563373133, -0.39138068432208872
]
# Internal consistency: the historical information raises every design flow and widens
# every confidence band, and both frequency curves increase with return period.
assert all(fit_censored["point_estimates"][i] > fit_plain["point_estimates"][i] for i in idx)
for fit in (fit_plain, fit_censored):
q = [fit["point_estimates"][i] for i in idx]
assert all(b > a for a, b in zip(q, q[1:]))
assert all(
(fit_censored["upper_ci"][i] - fit_censored["lower_ci"][i])
> (fit_plain["upper_ci"][i] - fit_plain["lower_ci"][i])
for i in idx
)
print("All reproduction checks passed.")All reproduction checks passed.References
England, J.F., et al. (2019). Guidelines for Determining Flood Flow Frequency – Bulletin 17C. USGS Techniques and Methods 4-B5.
