18. Numerical methods

Language: Python (Jupyter notebook) - R version

The rest of this site’s examples fit a distribution, a copula, or a model to data. This one steps back a layer, to the general-purpose numerical toolkit those fits are built on (P2 “math extras”): root finding, integration in one, two, and many dimensions plus an ODE solver, interpolation, a linear-system solve, and the two non-tabular univariate functions. None of it is specific to hydrology, so every example below borrows a hydrologic frame where one is natural rather than inventing an abstract one.

What you’ll learn

• The four methods root_find() offers, and why Newton’s quadratic convergence lands closer to the true root than Brent’s default bracket search on the same problem.
• ode_solve() against a problem with a closed-form answer.
• The ten quadrature() methods compared on one integrand, and why the fixed-rule methods need more steps than their default to compete with the adaptive ones.
• A seeded quadrature_nd() Vegas run configured for a rare event with target_probability.
• interpolate()’s cubic spline against a straight line on a stage-discharge curve.
• Solving a linear system with qr_solve(), and evaluating a power law and its inverse with univariate_function().
• Where the cross-language guarantee holds for the three stochastic integrators, and where it measurably does not.

Setup

import matplotlib.pyplot as plt
import numpy as np

import corehydropy as ch

Finding a root: Brent vs Newton

root_find() solves \(f(x) = 0\). The default, Brent’s method, and its two relatives (bisection, secant) all need a bracket – an interval over which \(f\) changes sign. Newton-Raphson needs something different: an analytic derivative and a starting guess, with the bracket optional. Both find the same root of \(f(x) = x^2 - 2\), \(\sqrt{2}\), but not to the same precision:

f = lambda x: x**2 - 2
brent = ch.root_find(f, lower=0, upper=2)
newton = ch.root_find(f, method="newton", df=lambda x: 2 * x, first_guess=1)
print(f"brent  = {brent!r}")
print(f"newton = {newton!r}")
print(f"true   = {np.sqrt(2)!r}")

brent  = 1.4142135623731364
newton = 1.4142135623730951
true   = np.float64(1.4142135623730951)

Newton’s quadratic convergence lands on the true value to every digit Python prints; Brent’s search stops once its own default tolerance on the root (1e-8) is satisfied, which is a looser promise and leaves it a few units in the last place short – tightenable with tolerance, not a defect in either method.

The same root reappears as the intersection of a circle and a line, this time with two equations and root_find_system()’s multivariate Newton-Raphson, which needs a Jacobian instead of a scalar derivative:

def circle_and_line(v):
    return [v[0]**2 + v[1]**2 - 4, v[0] - v[1]]

def circle_and_line_jacobian(v):
    return [[2 * v[0], 2 * v[1]], [1, -1]]

ch.root_find_system(circle_and_line, circle_and_line_jacobian, first_guess=[1, 1])

array([1.41421356, 1.41421356])

\(x^2 + y^2 = 4\) meets \(x = y\) at \((\sqrt{2}, \sqrt{2})\), the same number as above.

An ordinary differential equation

ode_solve() steps a first-order ODE \(dy/dt = f(t, y)\) forward from an initial value. A decaying tracer concentration, \(dC/dt = -kC\), has a closed form, \(C(t) = C_0 e^{-kt}\), which makes it a clean check on the numerical solver rather than a demonstration of something otherwise unknowable:

k = 0.5
decay = ch.ode_solve(lambda t, c: -k * c, initial_value=10, start_time=0,
                      end_time=5, time_steps=51, method="rk4")
t = np.linspace(0, 5, 51)
analytic = 10 * np.exp(-k * t)
print(f"RK4 C(5) = {decay[-1]:.6f}, analytic = {analytic[-1]:.6f}, "
      f"difference = {decay[-1] - analytic[-1]:.2e}")

RK4 C(5) = 0.820850, analytic = 0.820850, difference = 1.11e-07

fig, ax = plt.subplots(figsize=(6.5, 4))
ax.plot(t, analytic, color="#5b7a8c", linewidth=4, label="analytic")
ax.plot(t[::10], decay[::10], "o", color="#b06a3b", label='ode_solve() (rk4)')
ax.set_xlabel("time")
ax.set_ylabel("concentration")
ax.set_title("RK4 against the closed form")
ax.legend(frameon=False)
fig.tight_layout()
plt.show()

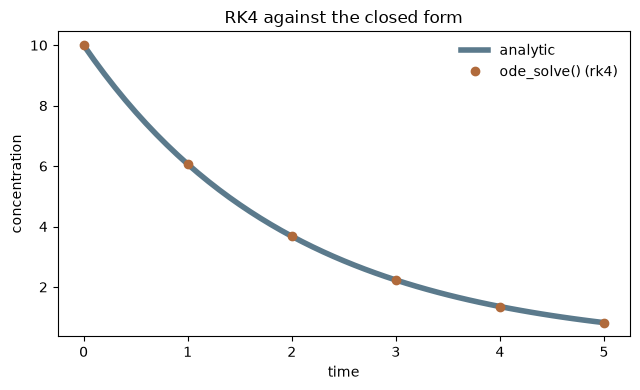

Fifty steps of fourth-order Runge-Kutta agree with the closed form to about a part in \(10^7\) – method="rkf"/"cash_karp" trade the fixed grid above for adaptive step control instead, at a tolerance you set directly.

Integrating one function ten ways

quadrature() wraps ten ported rules for \(\int_a^b f(x)\,dx\): five adaptive ("gauss_kronrod", the default; "simpsons"; "trapezoidal"; "adaptive_simpsons"; "gauss_lobatto") that subdivide until two nested estimates agree, and five fixed rules with no such refinement ("gauss_legendre", "gauss_legendre20", "simpsons_fixed", "trapezoidal_fixed", "midpoint"). All ten integrate the standard normal density over \([-3, 3]\), against the closed-form answer \(2\Phi(3) - 1 = 0.9973002039367398\):

import math

g = lambda x: math.exp(-x**2 / 2) / math.sqrt(2 * math.pi)
true_value = 0.9973002039367398

adaptive = ["gauss_kronrod", "simpsons", "trapezoidal", "adaptive_simpsons", "gauss_lobatto"]
fixed = ["gauss_legendre", "gauss_legendre20", "simpsons_fixed", "trapezoidal_fixed", "midpoint"]

print(f"{'method':20s} {'value':>16s} {'error':>12s}")
for m in adaptive + fixed:
    q = ch.quadrature(g, -3, 3, method=m)  # fixed methods at their default steps=2
    print(f"{m:20s} {float(q):16.10f} {float(q) - true_value:12.2e}")

method                          value        error
gauss_kronrod            0.9973002039     1.11e-16
simpsons                 0.9973002037    -2.67e-10
trapezoidal              0.9973002027    -1.19e-09
adaptive_simpsons        0.9973002039    -3.98e-11
gauss_lobatto            0.9973002045     5.85e-10
gauss_legendre           0.9972997744    -4.30e-07
gauss_legendre20         0.9973002039     1.11e-16
simpsons_fixed           0.9214445115    -7.59e-02
trapezoidal_fixed        1.2101223864     2.13e-01
midpoint                 0.7771055740    -2.20e-01

The five adaptive methods agree with the true value to 8-10 digits without being told how finely to subdivide. The five fixed rules do not, at their default of two steps – "midpoint" in particular is off by two parts in a thousand. That is not a weaker method, only an unconfigured one: steps sets how many, and there is no adaptive refinement to fall back on if you leave it low.

for m in ["simpsons_fixed", "trapezoidal_fixed", "midpoint"]:
    q = ch.quadrature(g, -3, 3, method=m, steps=1000)
    print(f"{m:16s} steps=1000  value={float(q):.10f}  error={float(q) - true_value:.2e}")

simpsons_fixed   steps=1000  value=0.9973002039  error=-7.19e-14
trapezoidal_fixed steps=1000  value=0.9973001242  error=-7.98e-08
midpoint         steps=1000  value=0.9973002438  error=3.99e-08

At 1000 steps all three land within \(10^{-4}\) or better, "simpsons_fixed" matching the adaptive methods’ precision. quadrature_2d() is the two-dimensional sibling, an adaptive Simpson’s rule over a rectangle – \(\int_0^1\int_0^1 xy\,dx\,dy = 1/4\) exactly:

ch.quadrature_2d(lambda x, y: x * y, min_x=0, max_x=1, min_y=0, max_y=1)

0.25 (status='Success', function_evaluations=25, standard_error=0.0)

A rare event with Vegas

quadrature_nd() reaches beyond two dimensions with three ported stochastic integrators: plain Monte Carlo (the default), Miser (recursive stratified sampling), and Vegas (adaptive importance sampling). Vegas is the one built for a rare event: target_probability calls the ported configure_for_rare_events() helper, which reshapes the sampling grid toward wherever the integrand is large rather than spending most of its budget on a region that contributes almost nothing.

The event here is the joint tail of two independent standard Normal draws, \(P(Z_1 + Z_2 > 4)\), with an analytic answer close enough to check against: \(Z_1 + Z_2 \sim N(0, 2)\), so the probability is \(1 - \Phi(4/\sqrt{2})\). method="vegas" takes f(x, weight) rather than f(x), and mapping the unit square through the standard Normal quantile turns the integral over \([0,1]^2\) directly into a probability, with no extra scaling:

norm = ch.Distribution("Normal", [0, 1])

def rare_event(x, weight):
    z1 = norm.quantile(x[0])
    z2 = norm.quantile(x[1])
    return 1.0 if (z1 + z2) > 4 else 0.0

vegas_p = ch.quadrature_nd(rare_event, min=[0, 0], max=[1, 1], method="vegas",
                            seed=12345, target_probability=0.01)
true_p = 1 - norm.cdf(4 / math.sqrt(2))
print(f"vegas estimate = {float(vegas_p):.7f}, analytic = {true_p:.7f}, "
      f"function evaluations = {vegas_p.function_evaluations}")

vegas estimate = 0.0023316, analytic = 0.0023389, function evaluations = 490000

Half a million evaluations of an indicator that is 1 on roughly one point in four hundred still lands within 1% of the analytic probability – rare-event sampling working as intended, not brute force. vegas_p.chi_squared is Vegas’s own internal-consistency diagnostic, not a goodness-of-fit test against the true value; a value near 1 across its independent evaluations says the run’s importance grid had converged.

What reproduces across languages, and what does not

Most pages on this site can promise a seeded run gives bit-identical numbers in R and Python, because every operation happens inside the shared C++ core and both packages call the same compiled code. quadrature_nd() needs a narrower promise, measured rather than assumed, and it differs by method.

MonteCarloIntegration‘s own arithmetic – a running count of hits divided by the sample size – has no near-cancelling subtraction for a fused-multiply-add to leave a mark on, so its Result reproduces bit-for-bit in this package, in corehydror, in the C++ fixture runner under both FMA settings, and against the real C# library; fixtures/callback/callback_cross_language.json pins it at zero tolerance for exactly that reason. Miser and Vegas are not so lucky: both compute a standard_error shaped like avg2 - avg*avg, and Vegas’s own chi_squared compounds a second such subtraction, and clang/gcc’s default fused-multiply-add contraction does not agree with .NET’s never-fused arithmetic on the last bit of either. Measured against the real C# library when the port landed (fixtures/callback/math.json’s quadrature_miser_gsl case): Miser’s own Result misses the C# value by 1 ULP under this package’s shipped build. Measured directly Python against R at the settings fixtures/callback/callback_cross_language.json itself uses for its Vegas sub-block (NdW_SumOfNormals3, independent_evaluations=2, function_calls=300): Result differs by 2 ULP language to language, not just in standard_error/chi_squared. It is a property of the classes’ own floating-point arithmetic, not a bug in either binding – and it is why that fixture’s quadrature_nd_short_exact case asserts function_evaluations and status on every method, Result additionally on Monte Carlo alone, and nothing else. The same three constructs, run here:

def nd_pi(x):
    return 1.0 if x[0]**2 + x[1]**2 < 1 else 0.0

monte_carlo = ch.quadrature_nd(nd_pi, min=[-1, -1], max=[1, 1], method="monte_carlo", seed=999,
                                min_iterations=20, max_iterations=200, relative_tolerance=0.1)

def nd_gsl(x):
    return (1 / math.pi**3) / (1 - math.cos(x[0]) * math.cos(x[1]) * math.cos(x[2]))

miser = ch.quadrature_nd(nd_gsl, min=[0, 0, 0], max=[math.pi, math.pi, math.pi], method="miser",
                          seed=999, max_function_evaluations=300)

mu20 = [10, 30, 17]
sigma20 = [2, 15, 5]

def sum_of_normals(x, weight):
    acc = 0.0
    for i in range(3):
        acc += mu20[i] + sigma20[i] * norm.quantile(x[i])
    return acc

vegas = ch.quadrature_nd(sum_of_normals, min=[1e-16] * 3, max=[0.9999999999999999] * 3,
                          method="vegas", independent_evaluations=2, function_calls=300)

print(f"{'method':12s} {'function_evaluations':>21s} {'status':>10s}")
for name, q in [("monte_carlo", monte_carlo), ("miser", miser), ("vegas", vegas)]:
    print(f"{name:12s} {q.function_evaluations:21d} {q.status:>10s}")

method        function_evaluations     status
monte_carlo                     21    Success
miser                          300       None
vegas                          500    Success

Interpolating a stage-discharge curve

interpolate() mirrors three C# interpolaters – linear, cubic spline, and polynomial. A straight line between rating-curve knots kinks at every one of them; a cubic spline is smooth through all of them, which matters wherever the interpolated value itself gets used in something sensitive to its derivative:

stage = [0, 2, 4, 6, 8, 10]
discharge = [0, 150, 620, 1450, 2600, 4100]
stage_out = np.arange(0, 10.01, 0.25)

linear_q = ch.interpolate(stage, discharge, stage_out, method="linear")
spline_q = ch.interpolate(stage, discharge, stage_out, method="cubic_spline")

fig, ax = plt.subplots(figsize=(6.5, 4))
ax.plot(stage_out, linear_q, color="#5b7a8c", linewidth=2, label="linear")
ax.plot(stage_out, spline_q, color="#b06a3b", linewidth=2, label="cubic spline")
ax.plot(stage, discharge, "o", color="#6b7f3f", label="knots")
ax.set_xlabel("stage")
ax.set_ylabel("discharge")
ax.set_title("Linear vs cubic spline")
ax.legend(frameon=False, loc="upper left")
fig.tight_layout()
plt.show()

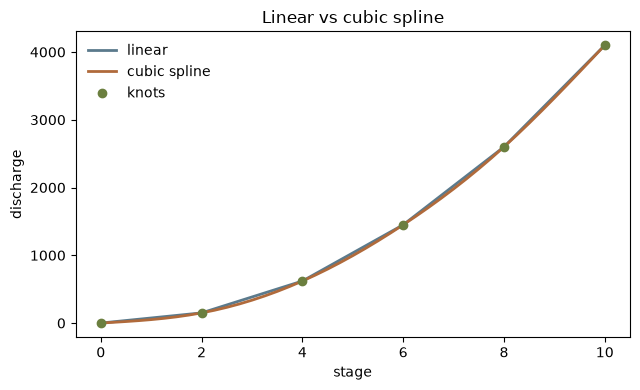

At the knots the two agree exactly; between them the straight line always underestimates a convex stretch of the curve, which is what “linear” is doing here – connecting the dots rather than following the curvature the knots themselves imply.

A linear system

qr_solve() mirrors the C# QRDecomposition::Solve overloads: Householder QR decomposition followed by back-substitution, for a vector or a matrix right-hand side. A square system with a known integer solution is enough to see it work:

a = [[3, 2, -1], [2, -2, 4], [-1, 0.5, -1]]
b = [1, -2, 0]
x = ch.qr_solve(a, b)
print(x)
print(np.array(a) @ x)  # reproduces b

[ 1. -2. -2.]
[ 1.00000000e+00 -2.00000000e+00  1.11022302e-15]

qr_decomposition() exposes the q/r factors directly, and gauss_jordan() is the alternative full-pivot route to the same kind of answer (plus, unlike qr_solve(), the matrix inverse itself).

A power function, evaluated and inverted

univariate_function() evaluates the two non-tabular Numerics IUnivariateFunction implementations. "power", \(Y = \alpha(X - \xi)^\beta\), is a power law of the shape a rating curve itself often takes; inverse=True evaluates its algebraic inverse instead of the forward function, which recovers the input exactly on a deterministic call:

discharge_at_stage = ch.univariate_function("power", [5, 2, 0, 3], [6])
stage_at_discharge = ch.univariate_function("power", [5, 2, 0, 3], discharge_at_stage, inverse=True)
print(f"discharge = {discharge_at_stage}, recovered stage = {stage_at_discharge}")

discharge = [180.], recovered stage = [6.]

\(5 \times (6 - 0)^2 = 180\), and the inverse recovers \(6\) back exactly. "linear", \(Y = \alpha + \beta X\), is the other type; both accept confidence_level to evaluate the non-deterministic path over \(\epsilon \sim N(0, \sigma)\) instead.

Key takeaways

1. root_find()’s four methods split into two families: three ("brent", "bisection", "secant") need a bracket, "newton" needs a derivative and a starting guess. All four solve the same problem to different precisions and at different costs.
2. The ten quadrature() methods are not interchangeable defaults – the five fixed rules need steps set explicitly to compete with the five adaptive ones, which set their own refinement.
3. quadrature_nd()’s three methods are a tradeoff between simplicity ("monte_carlo"), stratified refinement ("miser"), and importance sampling ("vegas"), and only "monte_carlo"’s aggregated result is proven to reproduce across every one of R, Python, C++, and C#.
4. target_probability is what turns Vegas from a general integrator into a rare-event sampler – it reconfigures the grid toward the tail rather than requiring you to importance-sample by hand.
5. interpolate()’s three methods diverge between knots, not at them; which one is right depends on whether the curve you are modeling actually has the smoothness a spline assumes.
6. qr_solve(), qr_decomposition(), and gauss_jordan() all solve a @ x = b; they differ in what else they hand back (the factors, or the inverse) and in whether a must be square.

Reproduction check

Two halves. The first is a regression on this page’s own numbers – deterministic values, checked at relative tolerance since floating-point literals typed by hand can land a bit off a computed value. The second reruns the three quadrature_nd() constructs fixtures/callback/callback_cross_language.json itself pins against the real C# library at zero tolerance, checking only what that fixture asserts: function_evaluations and status on every method, the Result value additionally on "monte_carlo" alone – Miser’s and Vegas’s own floating-point fields are deliberately not checked here for the reason given above.

def near(x, literal, tol=1e-15):
    return abs(x / literal - 1) < tol


root_system = ch.root_find_system(circle_and_line, circle_and_line_jacobian, first_guess=[1, 1])

assert near(brent, 1.4142135623731364)
assert near(newton, 1.4142135623730951)
assert near(root_system[0], 1.4142135623730951)
assert near(decay[-1], 0.82085009767073757736)
assert near(float(ch.quadrature(g, -3, 3)), 0.99730020393673990409)
assert near(float(vegas_p), 0.0023315896197769283606)
assert near(discharge_at_stage[0], 180)
assert near(stage_at_discharge[0], 6)
assert near(x[0], 0.99999999999999888978)
assert near(x[1], -1.9999999999999971134)
assert near(x[2], -1.9999999999999984457)
assert near(spline_q[4], ch.interpolate(stage, discharge, 1, method="cubic_spline")[0])

# The callback_cross_language.json construct: EMITTER-READ from the real C# library.
assert float(monte_carlo) == 3.4285714285714284
assert monte_carlo.function_evaluations == 21
assert monte_carlo.status == "Success"
assert miser.function_evaluations == 300
assert miser.status == "None"
assert vegas.function_evaluations == 500
assert vegas.status == "Success"

print("All reproduction checks passed.")

All reproduction checks passed.
